TGIC Curing Agent Matting Agent Texture Agent
- As a manufacturer of powder coatings in China, we know very well about the Raw Material Markets in China , and purchase cost-effective products.
- All raw materials are tested, be approved and used in our production.
- Cooperation with top suppliers of raw material in China, we ensure the consistent good quality, the most reasonable price, and enough inventory.
- Rich experience in powder coating enable us to help you obtain the most satisfactory products, and save your time of sourcing products .

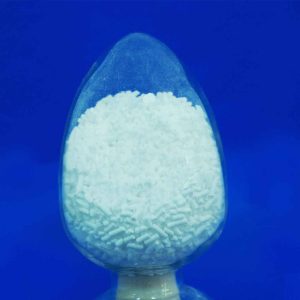

TGIC ( Triglycidyl Isocyanurate) – Powder Coating Grade
Introduction
TGIC ( Triglycidyl Isocyanurate) is an isocyanurate based crystalline polyepoxide compound. Its molecular weight is 297, CAS number 2451-62-9. It has good heat resistance, weather resistance, adhesion and high temperatures stability.
Main Application
- Used as cross-linked hardener for pure polyester powder coating. The usage is about 7-9% of the polyester by weight ( depending on acid value);
- Used as cross-linked hardener for carboxyl-terminated polyacrylate(PA). The usage is about 7% of the resin by weight (depending on acid value);
- Applied in producing high performance electrical insulating material, self-extinguishing polymer material (as stabilizer of fire-retardant), modified epoxy resin, high effect adhesive, stabilizer for plastic material,etc.

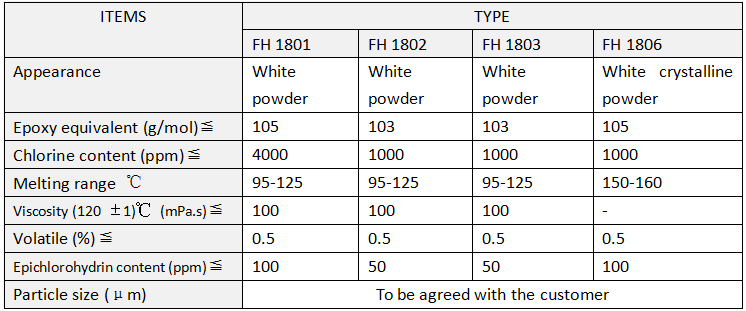

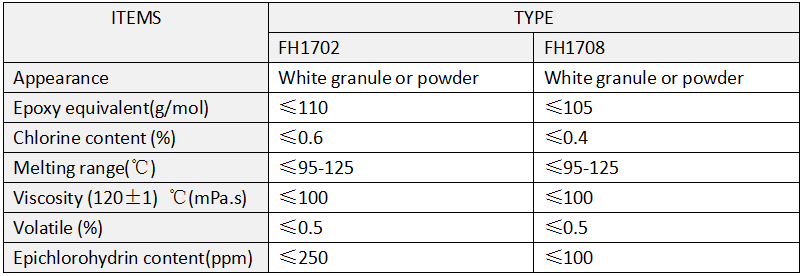

Technical data
Package And Storage
- 20kgs or 25kgs/ kraft paper-plastic compound bag
- Store in cool dry place. Keep free of heat moisture.
- Validity will be 1 year normal temperature. The product can still be usable out of this period if inspection passed.
TGIC ( Triglycidyl Isocyanurate) – Electronic Grade
Introduction
TGIC ( Triglycidyl Isocyanurate) is an isocyanurate based crystalline polyepoxide compound. Its molecular weight is 297, CAS number 2451-62-9. It has good heat resistance, weather resistance, adhesion and high temperatures stability.
Main Application
- Used as cross-linked hardener for carboxyl-terminated polyacrylate(PA). The usage is about 7% of the resin by weight (depending on acid value);
- Applied in producing high performance electrical insulating material as the cross-linked hardener for PCB inks.
Technical Data
Package,Storage
- 10kg or 20kg /cardboard box lined with double PE bags.
- Store in cool dry place. Keep free of heat and moisture.
- Validity will be 6 months under normal temperature. The product can still be usable out of this period if inspection passed.
Matting Agent ( Indoor) -FH13327
Introduction
FH13327 is a matting agent based on acrylate resin, mainly used in epoxy-polyester system powder coating to achieve coatings with gloss levels ranging from 5% to 70%. Compared with chemical reaction matting agent, FH13327 has better anti-yellowing and leveling properties bringing finer appearance.
Technical Data
Application and Performance
- In the production of hybrid powder coating, there is no obviously special selection requirement for polyester resin. Almost all 50/50, 60/40 polyester resins are well suited and the film obtained is good in leveling and mechanical properties.
- FH13327 is wax-free matting agent. It won’t influence the recoating and transferring print properties.
- The dosage ranges from 1-5% by weight of total formulation depending on the gloss needed. Mix with other ingredients in high speed mixer, and then extrude by extruder.
- It would consume some epoxy resin E-12 when using FH13327: one unit of FH13327 would consume two units of E-12.

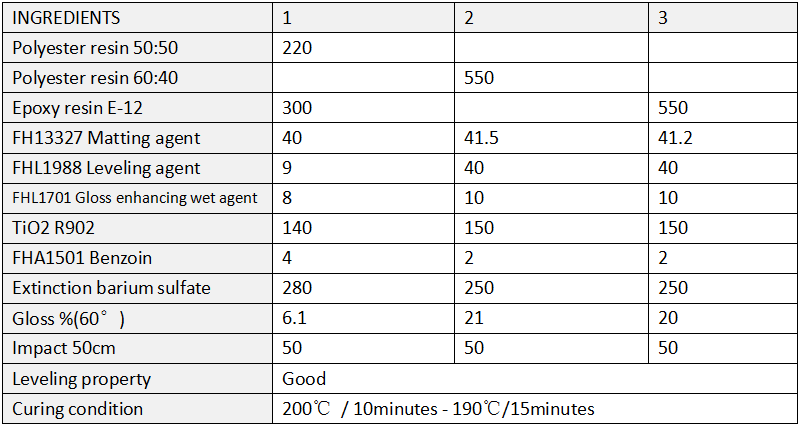

- Referenced formulation:
Package and Storage
- 25kg/polyethylene-lined kraft paper-plastic compound bag
- Store in a cool and dry place and seal tightly after using. As this product is irritant to respiratory tract, please wear dust-proof mask and glove when operation.
- Validity will be 1 year under normal temperature. The product can still be usable out of this period if inspection passed.
Matting Agent( Indoor)-FH13328
Introduction
FH13328 is a physical matting agent based on polymer resin, mainly used in epoxy-polyester system powder coating, it can achieve matting gloss as low as 6%. Compared with chemical reaction matting agent, FH13328 has better anti-yellowing and leveling properties bringing finer appearance.
Technical Data
Application and Performance
- In the production of hybrid powder coating, there is no obviously special selection requirement for polyester resin. Almost all 50/50, 60/40 polyester resins are well suited and the film obtained is good in leveling and mechanical properties.
- FH13328 is wax-free matting agent. It won’t influence the recoating and transferring print properties.
- The dosage ranges from 1-5% by weight of total formulation depending on the gloss needed. Mix with other ingredients in high speed mixer, and then extrude by extruder.

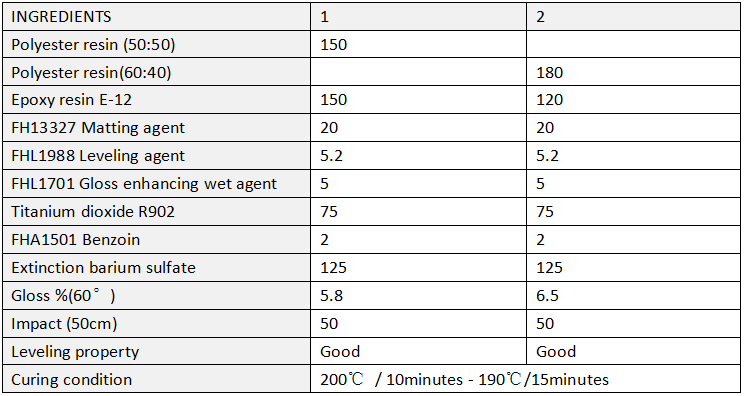

- Referenced formulation:
Package and Storage
- 25kg/polyethylene-lined kraft paper-plastic compound bag
- Store in a cool and dry place and seal tightly after using. As this product is irritant to respiratory tract, please wear dust-proof mask and glove when operation.
- Validity will be 1 year under normal temperature. The product can still be usable out of this period if inspection passed.
Matting Agent (Outdoor)-FH13326
Introduction
FH13326 is a matting agent synthetized from tailor-made macromolecule resin,and modified microcrystal wax under the complex catalysis of amido.

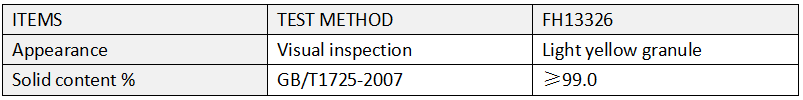

Technical Data
Application and Performance
- FH13326 can be applied in Polyester/TGIC, Polyester/HAA, and Epoxy/Polyester powder system.
- In Polyester/TGIC powder system, gloss levels ranging from 25-40% may be obtained if add 2%-5% FH13326. It is especially suitable in producing weatherability powder coatings such as aluminum alloy ceiling type.
- FH13326 has a terrific overbaking stability, anti-yellowing property, and it will not affect levelling and mechanical properties.
- It is not recommended to add any accelerant to improve the impact property or add any other matting wax to improve the film matting property in the formulation.

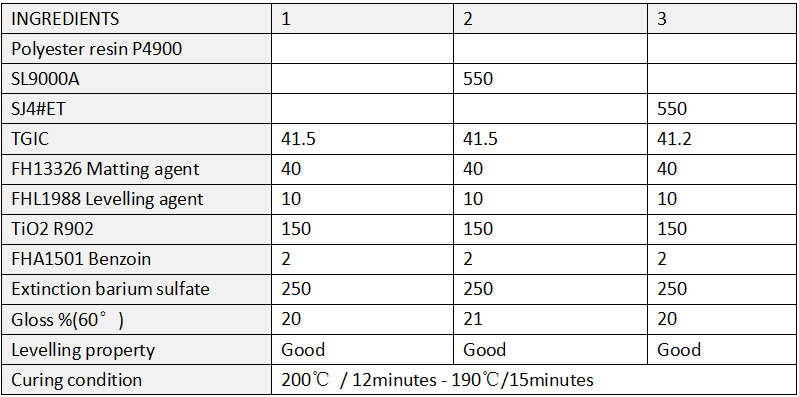

- Referenced formulation:
Package and Storage
- 25kg/polyethylene-lined kraft paper-plastic compound bag
- Store in a cool and dry place and seal tightly after using. As this product is irritant to respiratory tract, please wear dust-proof mask and glove when operation.
- Validity will be 1 year under normal temperature. The product can still be usable out of this period if inspection passed.
Matting Agent (Outdoor)-FH13329
Introduction
FH13329 is a non-reacting matting agent specially developed for polyester/TGIC type outdoor durable powder coating to provide 30-70% gloss and smooth matting surface. It is also applicable to produce other types of powder coating with semi-matt gloss.
Technical Data
Application and Performance
- FH13329 can be applied in polyester/TGIC powder coating to achieve gloss level ranging from 30-70% with excellent levelling effect and stable comprehensive properties.
- When FH13329 is used in other powder coating system, it can provide semi-matt non-yellowing coating with good film appearance.
- FH13329 is wax contained matting agent, and its dosage shall not exceed 4% by weight of total formulation, otherwise it will lead the powder coating to be worse in flowing effect, sticky, lumped, even block spray gun.

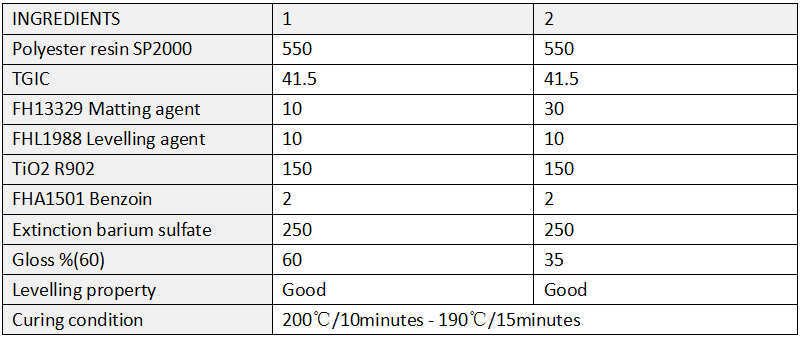

- Referenced formulation:
Package and Storage
- 20kg/polyethylene-lined kraft paper-plastic compound bag
- Store in a cool and dry place and seal tightly after using. As this product is irritant to respiratory tract, please wear dust-proof mask and glove when operation.
- Validity will be 1 year under normal temperature. The product can still be usable out of this period if inspection passed.
Leveling Agent – FHL1988 ,FHL1788 ,FHL1505
Introduction
FHL1988 FHL1788 with silica adsorption of polyacrylate flow ping agent, both are suitable for all kinds of thermoplastic and thermosetting powder coating , which can effectively improve the flow of powder coating, increase the clarity and flow flat surface effect.
FHL1505 in barium adsorption of polyacrylate flow ping agent, applicable to epoxy, mixing, pure polyester, polyester and other thermosetting and thermoplastic powder coatings, has high cost performance.

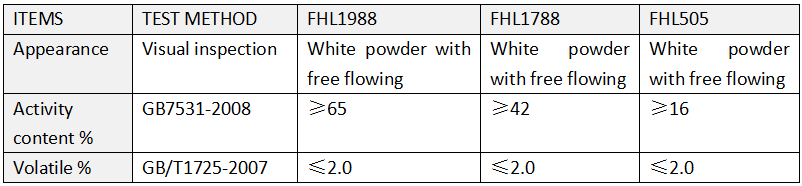

Technical Data
Application and Performance
- This product is widely used in pure epoxy type, hybrid type, pure polyester type(TGIC)/hydroxyl alkyl amide and polyurethane etc. Various kinds of thermosetting powder coating, as universal flow ping agent.
- Eliminate the phenomenon of fisheye, shrinkage,reduce the film surface tension, improve gloss coating.
- Improve wetting of base material, reduce the orange peel.
- Dose not contain silicone composition, do not affect coating adhesion.
- FHL1988 usage for 0.8%-1.2% of the total, FHL1788 usage for 1.2% -1.6% of the total, are not including wetting promoter, the user can be adjusted according to this formula; FHL1505 use according to 3.5%-4.5% , with total mixed with other raw material extrusion, the user can be adjusted according to this formula.
- FHL1505 is not recommended for heavy metal content in powder coating of the request.
Package and Storage
- 25kg/polyethylene-lined kraft paper-plastic compound bag
- Store in a cool and dry place and seal tightly after using. As this product is irritant to respiratory tract, please wear dust-proof mask and glove when operation.
- Validity will be 1 year under normal temperature. The product can still be usable out of this period if inspection passed.
Texture Agent – Wrinkle Texture FHA1100
Introduction
FHA1100 is a texture agent with the element of acrylic acid ester. It can be applied to all kinds of powder coating system to produce hammer pattern or wrinkle pattern.

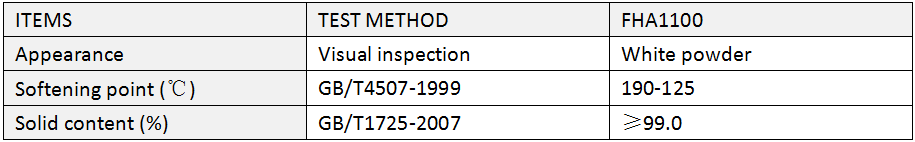

Technical Data
Application and Performance
- The texture agent FHA1100 could not be pre-mixed and extruded with all the other ingredients as the pattern shall not be obtained through this method. Add 0.1-0.5% by weight of base powder, and then cool mix all the materials very thoroughly. The exact dosage of FHA1100 can be determined by lab trails as per the desired pattern.
- When using this product, it generally doesn’t require leveling agent, gloss enhancing wet agent and benzoin, therefore it saves the production coat.
- In order to adjust the pattern, in addition to modulating the FHA1100 dosage, we also may adjust the filler’dosage and types in the powder coating formulation: more filler dosage makes small and shallow pattern; while fewer filler dosage brings big, deep pattern and is easy to reveal the substrate.
- Big dosage of FHA1100 makes small texture pattern, and small dosage gets large texture pattern.
- When using this product, mix and extrude all materials except texture agent FHA1100. the extruding process is the same as that of the normal powder coating. After pulverizing, add FHA1100 and mix very thoroughly.
Package,Storage and Other Precautions
- 25kg/polyethylene-lined kraft paper-plastic compound bag.
- Store in a cool and dry place and seal tightly after using. As this product is irritant to respiratory tract, please wear dustproof mask and glove when operation.
- Validity will be 1 year under normal temperature. The product can still be usable out of this period if inspection passed.
Texture Agent –Water Texture FHA1105
Introduction
Texture agent FHA1105 is an organic metallic complex, which can be used for producing water texture or other art powder coatings. This additive has strong curing accelerating function.

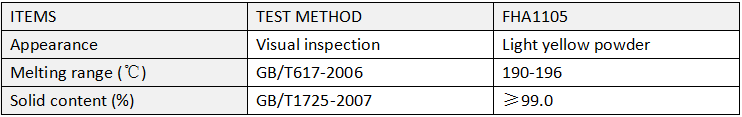

Technical Data
Application and Performance
- FHA1105 can be applied to pure epoxy and epoxy/polyester hybrid powder coatings.
- FHA1105 is suitable for pre-mixing with all other ingredients before extrusion. It is also suitable for post-mixing with the base powder. Moreover , the dosage of post-mixing is less than that of pre-mixing.
- When producing wrinkle powder coating,please make FHA1105 pre-mixed with other ingredients and extrude to have the base powder, and then put FHA1100 into the base powder for thorough mixing (the dosage of FHA1100 is normally 0.05-0.2% by weight of base powder); the more FHA110 used, the smaller wrinkle achieved, and the exact dosage shall be determined by test.
- Attention should be paid to the control of extruding temperature, so as to prevent pre-crosslink. The recommended dosage of FHA1105 is 3-5% by weight of resin.
- FHA1105 shall be irritative to mucosa. Please keep air fresh and ventilated when operating.
- When producing special texture (such as water stripe ) powder coatings, the suggested film thickness is more than 55μm, and baking temperature is more than 185℃.

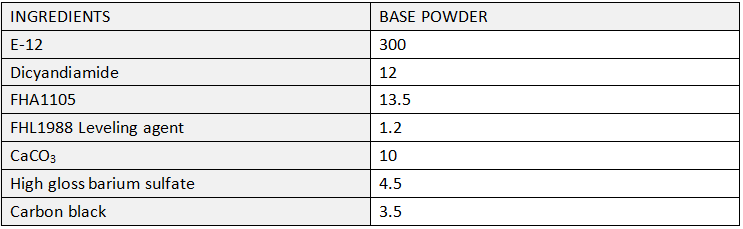

- Referenced formulation:
Note : Mix all the ingredients, extrude at 90-100℃, pulverize after cooling, and pass through a 160 mesh screen to prepare the base powder. Add FHA1100 into the base powder and fully mix (the dosage of FHA1100 is 0.05-0.2% wt calculated against base powder). Variation between different texture patterns can be obtained by suitable dosage adjustment of FHA1105 based on test.
Package ,Storage and Other Precautions
- 25kg/polyethylene-lined kraft paper-plastic compound bag.
- Store in a cool and dry place and seal tightly after using. As this product is irritant to respiratory tract, please wear dustproof mask and glove when operation.
- Validity will be 1 year under normal temperature. The product can still be usable out of this period if inspection passed.
Texture Agent – Sand Texture FHA1120
Introduction
FHA1120 is a kind of modified fluoride product. It can be used in various kinds of powder coating system to obtain the sand effect texture from very fine to coarse pattern.

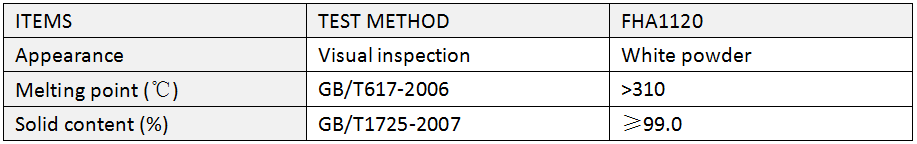

Technical Data
Application and Performance
- FHA1120 can be applied in various kinds of powder coating systems to generate the sand grain effect.
- The common dosage of FHA1120 ranges from 0.1-0.5% by weight of total formulation. The precise amount should be tried in the lab.
- While using FHA1120, it is suitable to add certain amount of Bentonite to adjust the effect and luster of sand texture.
- It is not necessary to use any special process: just pre-mix all the ingredients directly including FHA1120, and then extrude under the normal temperature.
- FHA120 is silicone free without staining properties.
Package ,Storage and Other Precautions
- 25kg/polyethylene-lined kraft paper-plastic compound bag.
- Store in a cool and dry place and seal tightly after using. As this product is irritant to respiratory tract, please wear dust-proof mask and glove when operation.
- Validity will be 1 year under normal temperature. The product can still be usable out of this period if inspection passed.
Degassing Agent – Benzoin FHA1501
Introduction
Benzoin, otherwise know as 2-Hydroxy-1.2-Diphenylethanone, can be applied to powder coating as degassing agent. It is an excellent additive for powder coating, and by far the most effective degassing agent.

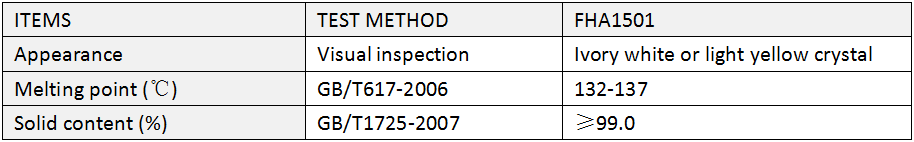

Technical Data
Application and Performance
- The function of Benzoin is to eliminate the bubbles in the melting powder coating, i.e. eliminate the key factor resulting in film pinhole.
- It can be applied in all categories of powder coatings.
- Application method: mix with other ingredients directly before extrusion.
- The recommended dosage is about 0.3-0.8% calculated on total formulation weight. The precise amount shall be based on the lab test.
- Its dosage should be properly controlled to obtain suitable film, as superfluous benzoin may cause yellowing phenomenon.
Package ,Storage and Other Precautions
- 25kg/polyethylene-lined kraft paper-plastic compound bag.
- Store in a cool and dry place and seal tightly after using. As this product is irritant to respiratory tract, please wear dust-proof mask and glove when operation.
- Validity will be 1 year under normal temperature. The product can still be usable out of this period if inspection passed.
